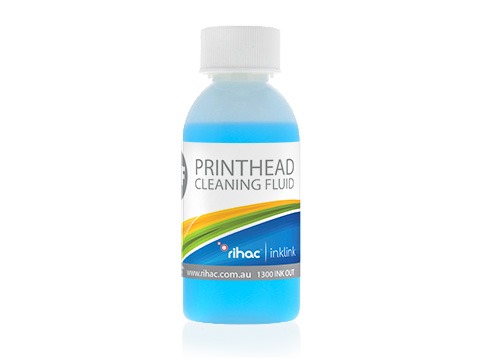

Catalogue » Sublimation Products » Sublimation Cleaning Fluid

• Suitable for Dye, Pigment or Sublimation Inkjet printers
• Solvent base of 2-Ethoxyethanol & Diethylene glycol
• 5% Active Enzyme per volume
• De-humidification agent to prevent print head corrosion
• Can remove dried ink from printers and capping stations

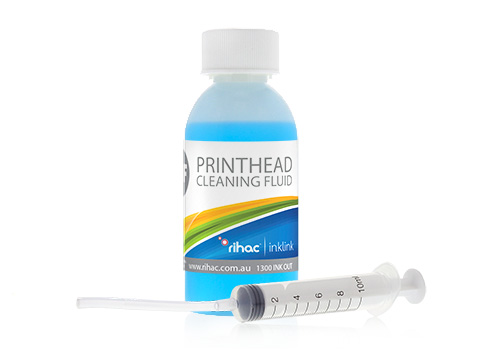

• Syringe and tubing provided for cleaning nozzles
• Safe for both thermal and delicate Piezo heads
• Infuses at atmospheric pressure to diffuse sedimented
  ink particles
• REACH and RoHS Compliant
• Material Data Safety Sheet (MSDS) available

Occasionally inkjet printers may develop minor blockages to the
print heads. A head blockage is identifiable by performing a nozzle
check. Once printed examine the nozzle check pattern and identify
and missing or misaligned lines as pictured below.

Missing lines can be caused by an air pocket or a blocked print head.

To identify the cause perform a head cleaning cycle followed by a further nozzle check.
Compare the two nozzle check patterns. If the nozzle gaps have changed position then
the issue is most likely caused by an air-forge or air pocket in the cartridge. If the gaps
remain constant then the issue is possibly due to a blocked print head. Print head blockages can be caused by a variety of different issues. The most common cause is dried ink inside the head.

If the issue appears to be a blocked print head you will need to clean the print head.

Full Instructions provided with purchase. Please note with Large Format Printers you will need a cartridge to use the cleaning fluid.
